Digital Combo 14×16 Air Automatic

$2,575.00

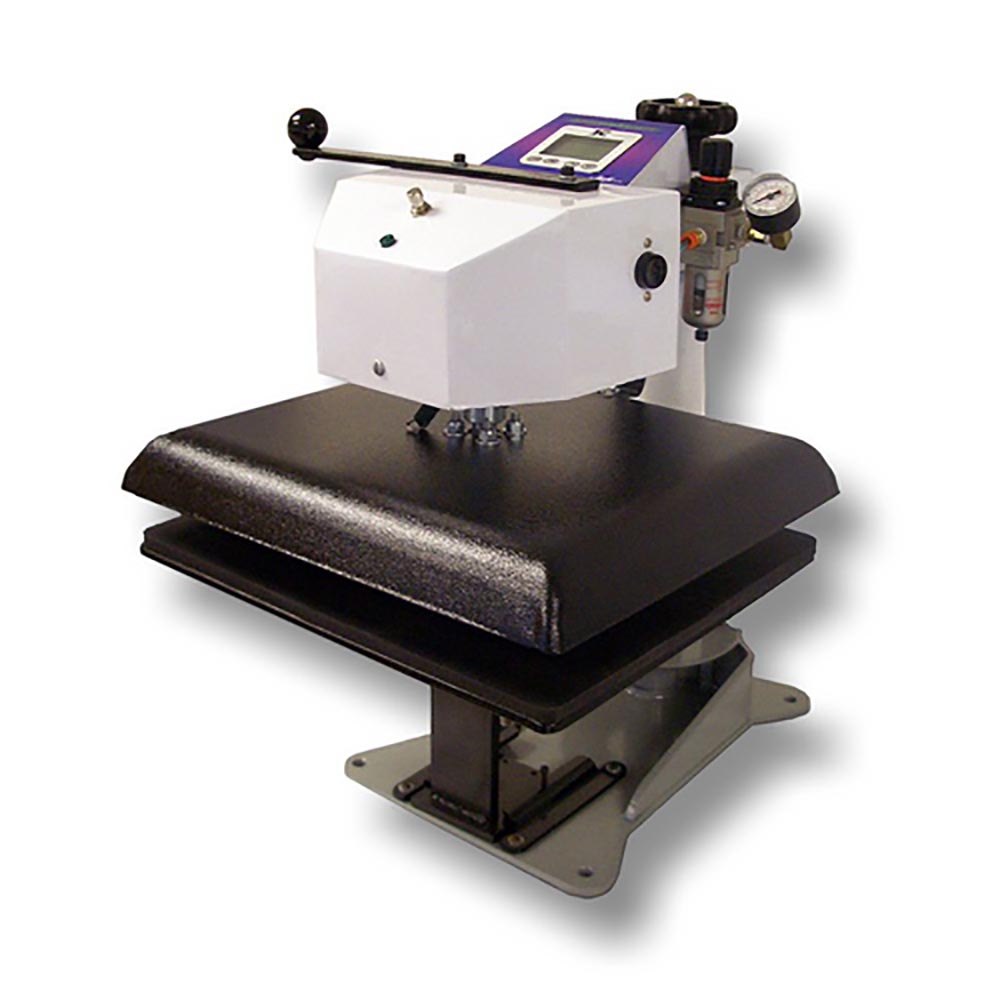

The Digital Combo DC16AP is an air-operated, automatic 14×16 swing-away heat press with optional interchangeable heat platens and tables. The smooth automatic pressing and pushbutton activation provides a productive, fatigue-free operation.

Please call for shipping quote.

Summary

  • Unit Price:
  • Subtotal:
SKU: dk16ap Categories: ,
Description
Additional information

FEATURES

  • Automatic air operated pressing
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 800 lbs max
  • Interchangeable Heat Platens & Tables
  • Solid steel welded framework
  • SuperCoil-Microwinding™ heater technology
  • Accommodates materials up to 2″ thick
  • Temperature readout accuracy +-2°F – can show °C or °F
  • 70 Programmable presets
  • Records number of pressing cycles done
  • Teflon-coated 3/4″ thick heat platen

WARRANTY

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

SPECS

  • Air Compressor Required (min): 5gal, ½cfm, 100psi, 1/4″ line
  • Weight: 135 Lbs
  • Electrical: 1500W / 12A / 120V
  • Shipping Dims: 42″L x 32″W x 36″H
  • (add $35 for 220V international)
Weight 140 lbs
